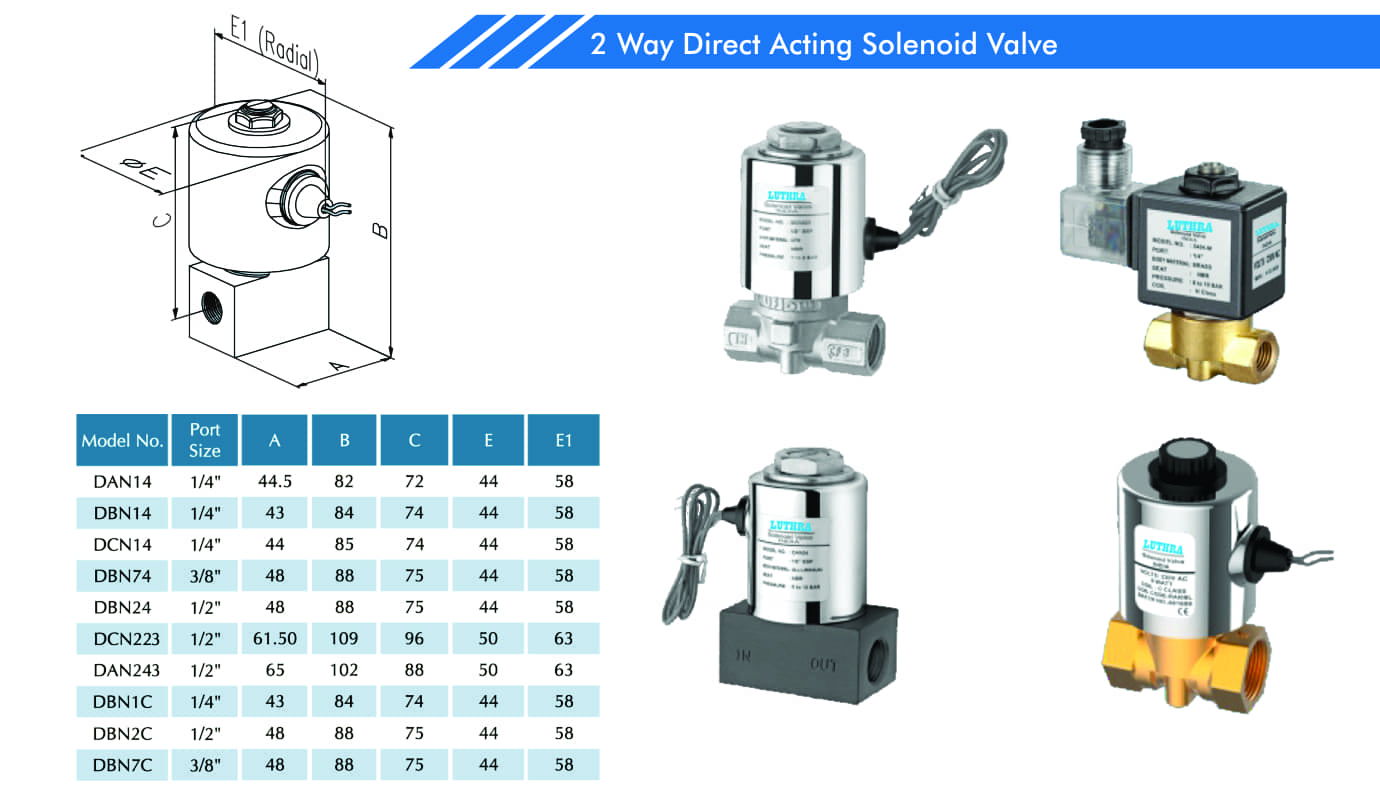

2/2 Way Direct Acting Solenoid Valve
2/2 way direct acting solenoid valve
2/2 Way Direct Acting Solenoid Valve, Best For the Inflammable media, The Flameproof Explosion Proof Solenoid Coils are available for such application.
| Port : | Refer below technical data sheet (Available BSP / NPT) |
| End Connection : | SS ASTM A351 Grade CF8 / CF8M, Aluminium,Forged Brass. |
| Seal & 'O' Ring : | Nitrite (NBR),VITON (FKM),EPDM,Silicon. |
| Circumstance Temp : | -10 °C to 90 °C |
| Media Temp: | -10 °C to 90 °C, -10 °C to 140 °C, -10 °C to 180 °C. |
| Media : | Air, Water, Chemical, Gases, Oil, Diesel, Kerosene, LPG. |
| Main Features : | Internal Parts are superior corrosion resistance steel (Equivalent to SS316L) Suitable for Food Industries, Pharmaceuticals, Chemical applications & Highly corrosive environment. |
| Operating Voltage : | AC : 24V, 48V, 110V, 230V, 240V, 50HZ/60HZ DC : 12V, 24V |
| Power Consumption : | AC : 5.5W, 7.5W, 8.5W, 9.5W, 10W, 11.5W, 12W DC : 10W, 11W |
| Features : | High Reliability Unaffected by Voltage Surges. Easy coil changes Coil lockable in 4Χ90, Position or freely movable in between as require. |
| Coil Housing : | Epoxy Square Coil, Metallic Round Enclosure, IP-67 Flame Proof Enclosure, IP-68 Weather Proof Enclosure. |
| Optional Feature : | 90% Power saver series also available. Manual Override. |
| Other Specification Data : | Available on request. |
