Flat-Face Quick Release Coupling

Flat-Face Quick Release Coupling

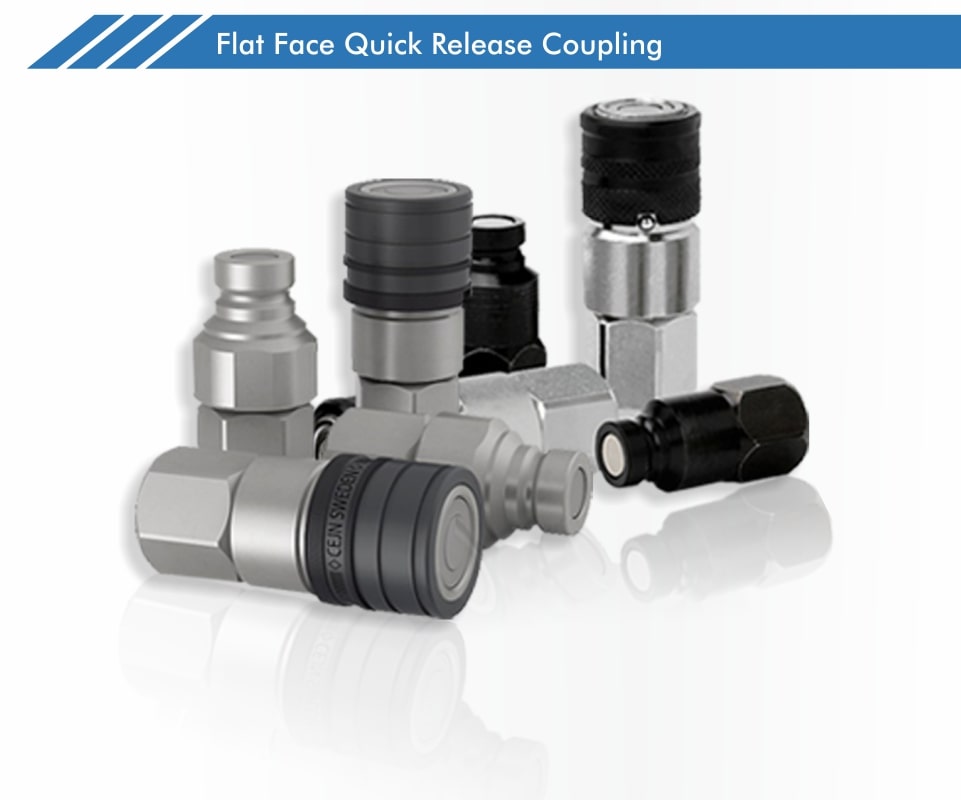

Flat Face Quick Release Coupling

Flat-Face quick-connect coupling that dimensionally interchange with the ISO 16028 Standard for low- and medium-pressure hydraulic applications. The Flat-Face design minimizes spillage during connection and disconnection. Series 262 is a range of products suitable for applications with less stringent demands. The series require only one hand for operation, making connection and disconnection fast and easy. Dust caps are available as accessories for both the coupling and nipple to prevent dust and debris from entering the system. Series 262 couplings also feature manual security locking as added protection against involuntary disconnection.


Temperature range: -30°C — +100°C (-22°F — +212°F)
Material coupling: Steel (zinc passivation)
Material nipple: Hardened steel (zinc passivation)
Material seal: Nitrile (NBR)
Connect ability: Without pressure
Max. working pressure connected: 250 bar (3625 PSI)
Min. burst pressure connected: 1000 bar (14503 PSI)
Min. burst pressure disconnected: 880 bar (12763 PSI)
