Quick Overview:

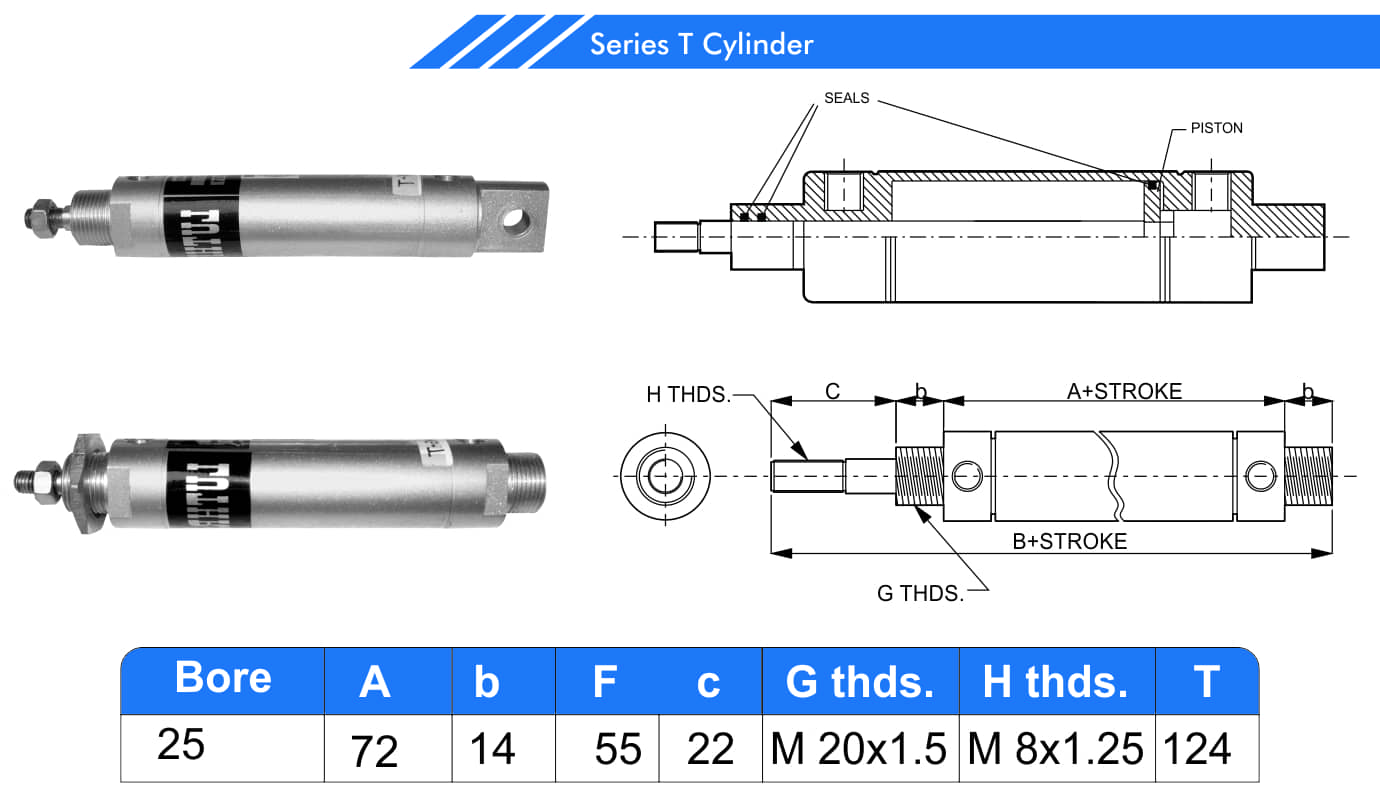

Series - T cylinders are available in bore sizes of 25mm. Higher bore sizes of upto 40mm are available on request. These cylinders have improved aesthetic quality as compared to Tie rod mounted cylinder. Also as the front cover is threaded to the tube, seals can be easily replaced. Cylinder can be directly neck mounted as the front / rear covers are threaded reducing system installation time.

The technical specifications of our range are mentioned below:

Working Pressure: 1 to 10 bar

Ambient Temperature: 20 to 80 Centigrade

Fluid: filtered air / water

Barrel: Brass

End Caps: Aluminum

Piston: Aluminum

Piston Rods: EN8 Hard chrome plated

Seals: Nitrile
